Description

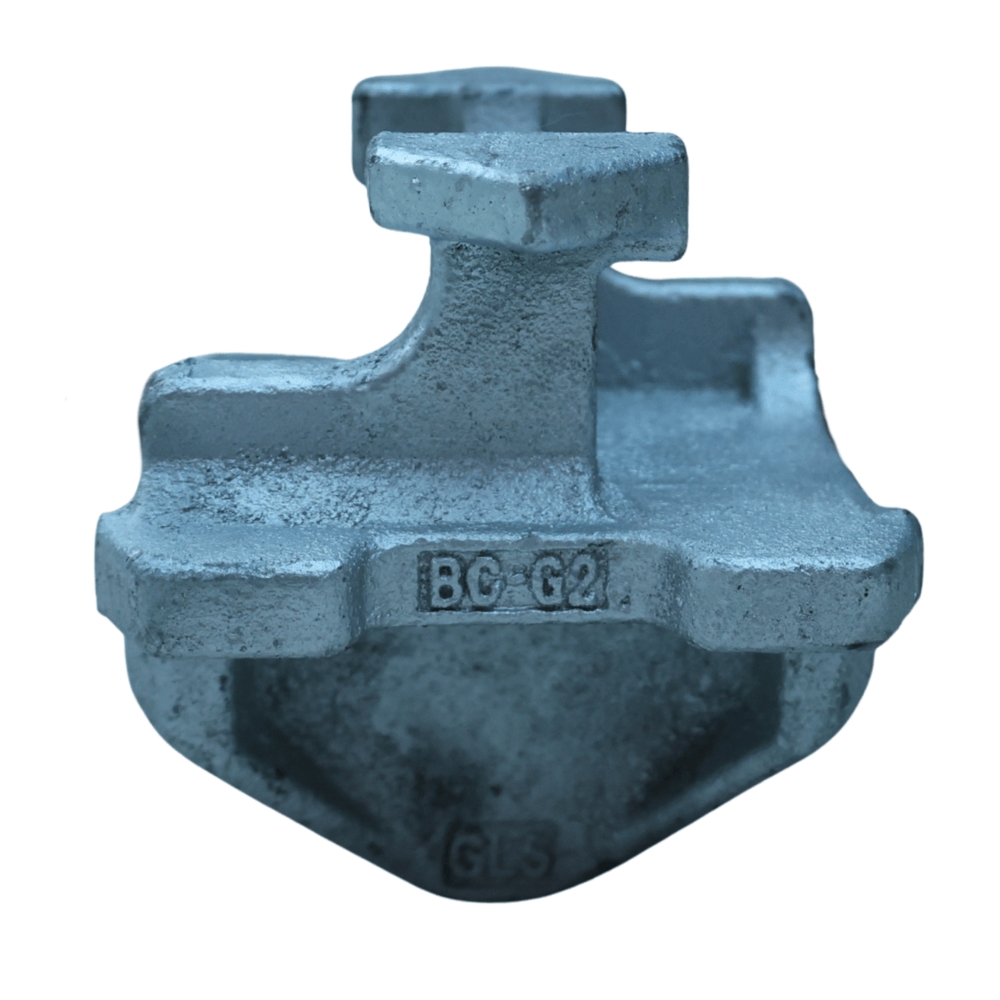

BC-G2 (C) Hanging stacking cone

Our BC-G2 (C) shipping container hanging stacking cone is a heavy duty container alignment device designed to simplify and secure vertical stacking of ISO shipping containers. Ideal for port & terminal operations, as well as container yards, this self locking cone ensures precise positioning with minimal manual effort.

The cone fits easily into the underside of corner castings, allowing for quick and secure stacking. Each container requires four cones, and the integrated flange increases the overall stack height by 12mm per row.
*Note: Cones are sold separately.

Stacking cone specification

Model: BC-G2 (C)
Type: Hanging stacking cone
Material: Cast steel
Finish: Hot dip galvanised
Compatibility: Standard ISO containers

Instructions for use:

1. Insert & rotate – Place the cone into the bottom corner of the upper container and rotate. It will automatically hang in place.

2. Stacking – Lower the upper container onto the lower one. The stacking cone aligns both containers, no manual intervention required.

3. Unloading – Lift the container as usual. The stacking cone remains attached and lifts out with it.

4. Removal – Push the cone up, hold it, then rotate to release and remove it.

Looking for more twist lock options? Dive into our extensive selection of twist locks to discover the perfect solution for your needs, including stacking twist locks and semi-automatic twist lock stacking pins.
